Safety Thermostats to Prevent Overtemp Available on Many Models
Temperature control is the most important factor in the use of Evans Stripcoat. We recommend heated thermostatically controlled melting equipment. Special sizes available upon request.
Download Operating Instructions ยปRound Dip Coating Pots
Cast aluminum round dip pots are thermostatically controlled and assure even heat distribution. They are available in various sizes with capacities from one pint to one hundred gallons. Replaceable heating elements are available. Different temperature ranges are also available.
Aluminum Rectangular Melting Tanks
The shape of the object to be dipped determines whether a round or rectangular tank is best suited for the job. Heavy cast aluminum assures even heat distribution and eliminates localized hot spots.
Melting Equipment - Round Cast Aluminum (A) Pots
| Ship Wt | Model lb Cap | Approx Liquid Cap | Inside | Overall | Voltage | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Watts | Width | Depth | Width | Depth | 115 | 220-1 | 220-3 | 440-3 | |||
| 5# | WP1A | 1 Pint | 400 | 3.5" | 3" | 5.5" | 6.5" | X | X | n/a | n/a |
| 8# | WP2A | 1 Quart | 600 | 5 | 3.5 | 7 | 6.5 | X | X | n/a | n/a |
| 9# | WP4A | 2 Quart | 600 | 5.5 | 5 | 8 | 8.5 | X | X | n/a | n/a |
| 13# | WP7A | 3.5 Quart | 1000 | 6 | 8 | 8 | 11 | X | X | n/a | n/a |
| 20# | WP8A | 1 Gallon | 900 | 8 | 5.5 | 9 | 10 | X | X | n/a | n/a |
| 30# | WP12A | 1.5 Gallon | 1000 | 6 | 12 | 10 | 14 | X | X | n/a | n/a |
| 30# | WP16A** | 2 Gallon | 2000 | 10.5 | 6 | 13 | 9.5 | X | X | n/a | n/a |
| 107# | WP40A* | 5 Gallon | 4400 | 12 | 12 | 16 | 18 | n/a | X | X | X |
| 145# | WP80A* | 10 Gallon | 6600 | 14 | 15 | 19 | 21 | n/a | X | X | X |
| 205# | WP160A* | 20 Gallon | 7700 | 20 | 15 | 25 | 21 | n/a | X | X | X |
| 255# | WP200A* | 25 Gallon | 8500 | 19 | 24 | 24 | 28 | n/a | X | X | X |
Melting Equipment - Rectangular Dipping Tanks
| Ship Wt | Model lb Cap | Approx Liquid Cap | Inside | Overall | Voltage | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Watts | Width | Length | Depth | Width | Length | Depth | 115 | 220-1 | 220-3 | 440-3 | |||
| 14# | RWP1 | 1 Quart | 600 | 4" | 4" | 2" | 9" | 9 | 5" | X | X | n/a | n/a |
| 15# | RWP2 | 2 Quart | 1200 | 4 | 8 | 2 | 9 | 13 | 5 | X | X | n/a | n/a |
| 27# | RWP3 | 3 Quart | 1000 | 4 | 12 | 2 | 9 | 17 | 5 | X | X | n/a | n/a |
| 24# | RWP486 | 4 Quart | 1200 | 4 | 8 | 6 | 8 | 12 | 9 | X | X | n/a | n/a |
| 40# | RWP4 | 6 Quart | 1500 | 6 | 12 | 4 | 11 | 17 | 7 | X | X | n/a | n/a |

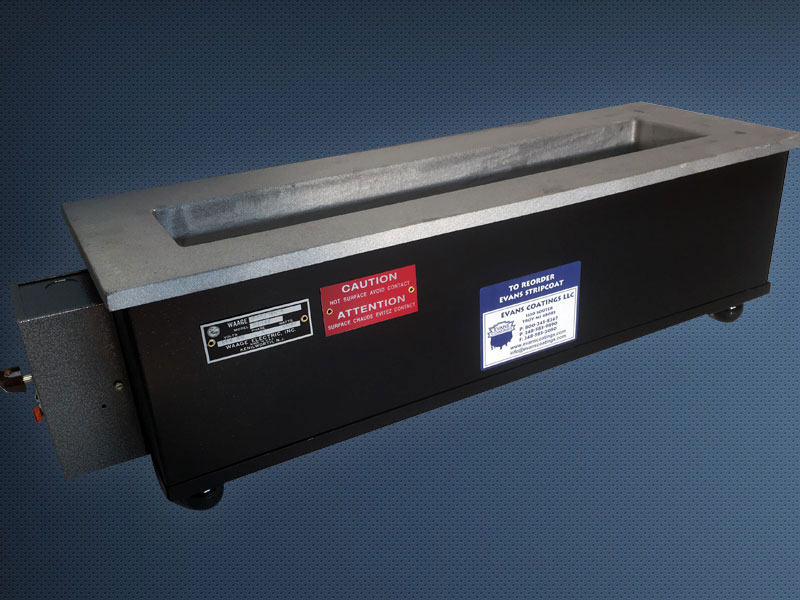

| 34# | RWP5 | 6 Quart | 1200 | 4 | 20 | 4 | 9 | 28 | 8 | X | n/a | n/a | n/a |

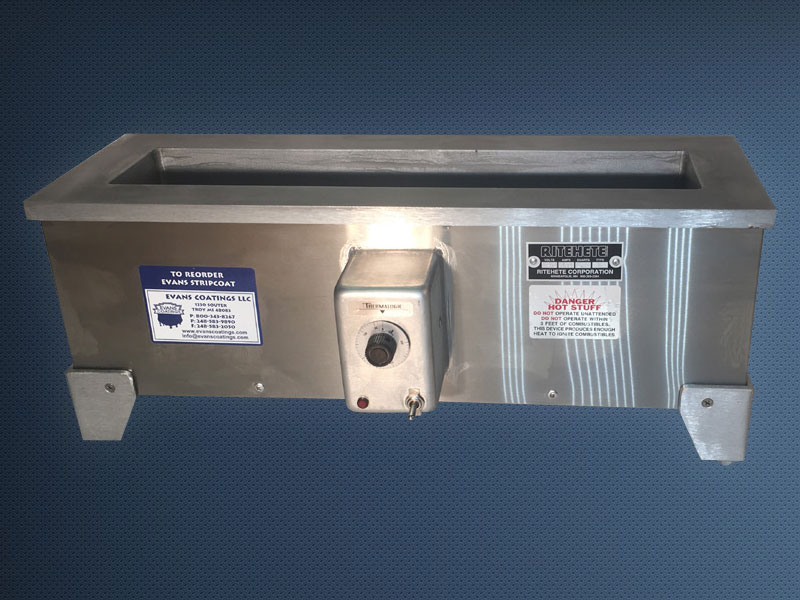

| 36# | RH20X4X4 | 6 Quart | 1200 | 4 | 20 | 4 | 13 | 25 | 11 | X | n/a | n/a | n/a |
| 59# | RWP6* | 15 Quart | 3150 | 6 | 18 | 8 | 10 | 22 | 13 | n/a | X | X | X |
| 59# | RWP6-7-1* | 15 Quart | 2325 | 6 | 18 | 8 | 10 | 22 | 13 | X | n/a | n/a | n/a |
| 77# | RWP6366* | 22 Quart | 2400 | 6 | 36 | 6 | 14 | 46 | 12 | X | X | n/a | n/a |
| 95# | RWP101612* | 34 Quart | 3600 | 10 | 16 | 12 | 14 | 30 | 14 | n/a | X | X | n/a |
Melting Equipment – Plugs
115 Volt Receptacle
115 Volt 20 Amp Receptacle
220 Volt Receptacle
* safety thermostats now standard on these models
** safety thermostats optional on these models
